Lame compatible Summa 500-9801

Compatible Single-Edge Cutout 65° Blade – Summa F Series – 500-9801

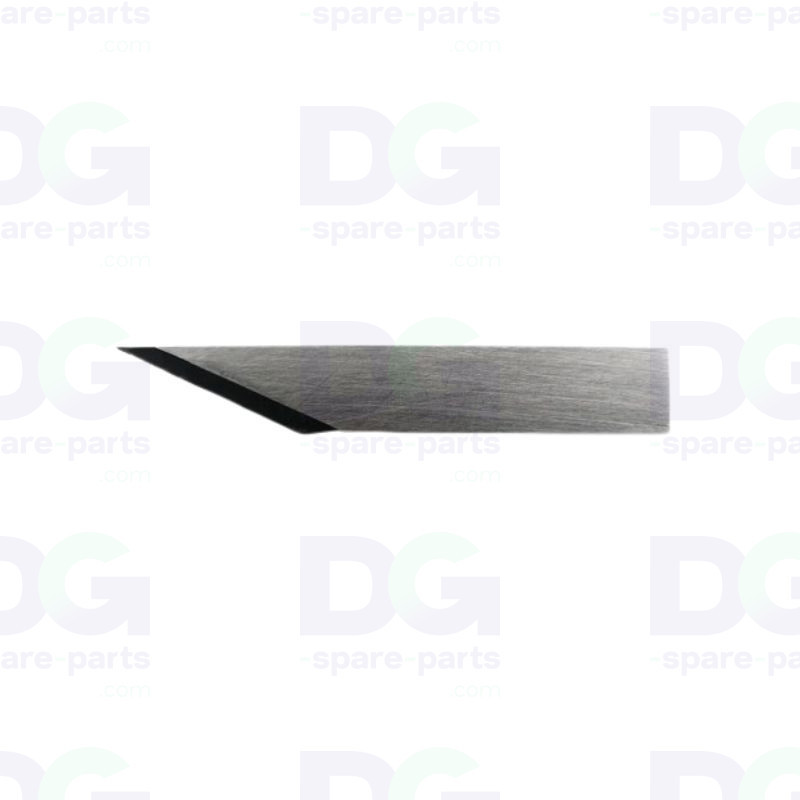

The 500-9801 compatible blade is a single-edged tangential cutting blade designed for use with Summa F Series flatbed cutting tables. It is a direct replacement for the original Summa blade and is installed in the 500-9310 tangential module using the 500-9312 F Series Single Edge tool.

Made from tungsten carbide, this blade offers the hardness and wear resistance required for intensive cutting of flexible and semi-rigid materials. Its 65° sharpening angle (25° point angle) enables a clean and precise cut on thicknesses of up to 6 mm, with a maximum cutting depth of 12 mm.

Available as a compatible blade, it is a reliable alternative to original Summa consumables. Regular replacement ensures optimal cutting quality is maintained and prevents production deviations in your signage, POS or packaging work.

Technical specifications

• Part number: 500-9801
• Original manufacturer: Summa
• Part type: Single-edge tangential cutting blade (Single Edge Cutout)
• Material: Tungsten carbide
• Sharpening angle: 65° (point angle 25°)
• Dimensions: 25 × 4 × 0.63 mm
• Maximum cutting depth: 12 mm
• Maximum material thickness: 6 mm
• Compatible module: Tangential Knife Module 500-9310
• Compatible tool: Single Edge F Series Tool 500-9312
• Part type: Compatible blade (aftermarket)
• Application: Digital flatbed cutting tables – cutting of flexible and semi-rigid materials

Compatibility and use

• Summa F1432
• Summa F1612
• Summa F1625
• Summa F1832
• Summa F3220
• Summa F3232

Function

• Tangential cutting of flexible materials: vinyl, adhesive films, flexible tarpaulins
• Cutting of semi-rigid materials: compact cardboard, thin foam, thin expanded PVC
• Cutting of complex shapes and fine details thanks to the 25° cutting angle
• Production of full-material cut-outs with clean edge finishes
• Maintains cutting precision during long, repetitive production runs

Possible signs of wear

• Irregular, frayed or torn cut edges
• Incomplete cuts requiring a second pass or manual finishing
• Increased cutting pressure required to cut through the material
• Deviation from the cutting path on curves and tight angles
• Material residue or burrs on the cut edges
• Abnormal noise or excessive vibration during cutting

Regular replacement of the 500-9801 blade is essential to ensure consistent cut quality and extend the service life of the tangential module. A worn blade places greater strain on the table’s mechanics and can lead to avoidable production waste.
