✔️ Blade compatible with Zund Z52 / Summa 500-9862 / 500-0862 – tungsten
carbide ✔️ Max. cutting depth: 7 mm
✔️ Decagonal rotary blade (10 sides) – angle N/A (rotary blade)
✔️ Large-diameter rotary blade for thick textiles and composites
Price:
€57.60
VAT excluded
Condition
Last items in stock
2 Items available
Quantity:
New or refurbished at the best price
Fast shipping within 24 hours
.png)
Worldwide delivery
Rate us on
Product description

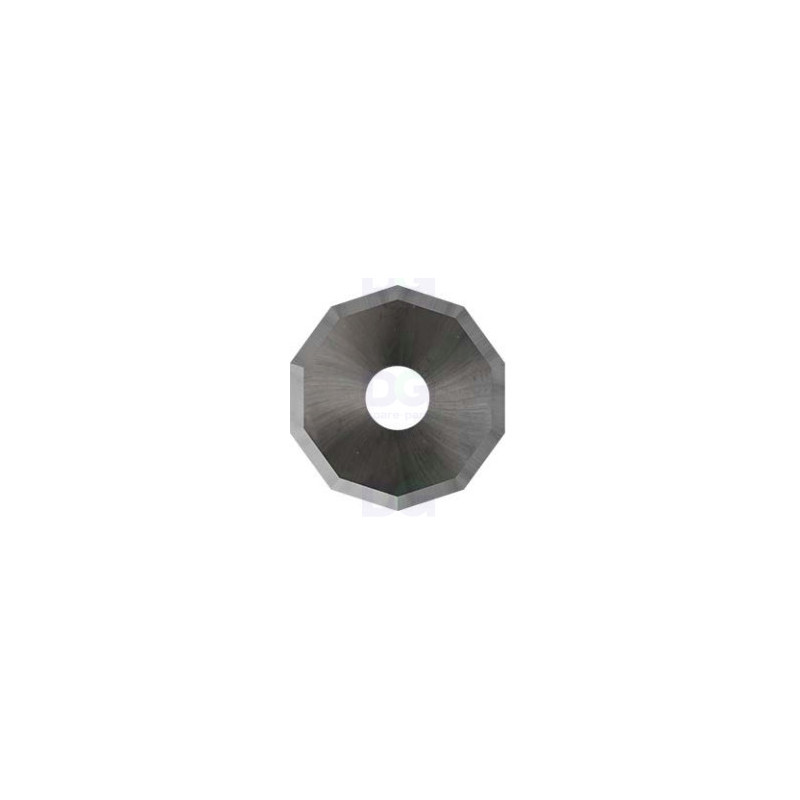

Compatible blade Z52/500-9862/500-0862 – Tungsten carbide
The Z52/500-9862/500-0862 compatible blade is a digital cutting consumable designed to replace the original blade on Zund and Summa cutting tables. Made from tungsten carbide, it offers superior wear resistance and longevity compared to high-speed steel (HSS) blades.
With a cutting angle of N/A (rotary blade) and a maximum cutting depth of 7 mm, this blade is particularly suitable for cutting: thick textiles, composite fibres (aramid, Kevlar, carbon, glass), felt, carpet, leather and paper.
Compatible with Zund and Summa F-Series digital cutting tables, this blade fits directly into the original blade holder without any modification. Its dimensions (Ø 32 mm – thickness 0.6 mm) ensure a perfect fit and performance identical to the original part.
Technical specifications
- Zund compatible part number: Z52
- Summa compatible part number: 500-9862 / 500-0862
- Blade material: Tungsten carbide (HM)
- Type: Decagonal rotary blade (10 sides)
- Cutting angle: N/A (rotary blade)
- Max. cutting depth: 7 mm
- Dimensions: Ø 32 mm – thickness 0.6 mm
- Installation: Direct fitting into the original Zund or Summa blade holder
Compatibility and use
- Zund G3, S3, D3 and L3 series cutting tables
- Summa F-Series cutting tables (F1612, F1832, F2630, etc.)
- Other Zund and Summa models using part number Z52 / 500-9862
Function
- Rotary cutting of thick textiles and composite materials
- Cutting of aramid, Kevlar and carbon fibres with reduced overcut
- Processing of thick felt, carpet and leather with increased depth
- Continuous cutting with increased diameter for improved cutting force
Possible signs of wear
- Composite fibres not cut cleanly
- Premature wear of the cutting edges on abrasive materials
- Irregular rotation or jamming in the tool holder
- Excessive fraying on thick technical fabrics
Regular replacement of this blade ensures consistent cutting quality, reduces machine downtime and prevents waste caused by imprecise cutting.
♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
Compatibility
| Compatible with Summa® | Summa F1432, Summa F1612, Summa F1832, Summa F3220, Summa F3232 |
|---|---|
| Compatible with Zund® | Zund D3 2XL-3200, Zund D3 3XL-3200, Zund D3 L-3200, Zund D3 XL-3200, Zund G3 2XL-1600, Zund G3 2XL-3200, Zund G3 3XL-1600, Zund G3 3XL-2500, Zund G3 3XL-3200, Zund G3 L-2500, Zund G3 L-3200, Zund G3 M-1600, Zund G3 M-2500, Zund G3 XL-1600, Zund G3 XL-3200, Zund L3 C-40, Zund L3 C-56, Zund LC series, Zund LC-1400, Zund LC-16/52, Zund LC-1800, Zund LC-2400, Zund LC-2600, Zund LC-27/32, Zund LC-5200, Zund PN 2XL-3000, Zund PN 3XL-3000, Zund PN L-1200, Zund PN L-2500, Zund PN L-3000, Zund PN L-800, Zund PN LH-1600, Zund PN LR-1600, Zund PN M-1200, Zund PN M-1200NL, Zund PN M-1600, Zund PN M-800, Zund PN S-800, Zund PN Series, Zund PN XL-1200, Zund PN XL-1600, Zund PN XL-2500, Zund PN XL-3000, Zund PN XL-800, Zund S3 L-1200, Zund S3 L-1600, Zund S3 M-1200, Zund S3 M-1600, Zund S3 M-800, Zund S3 XL-1200 |
