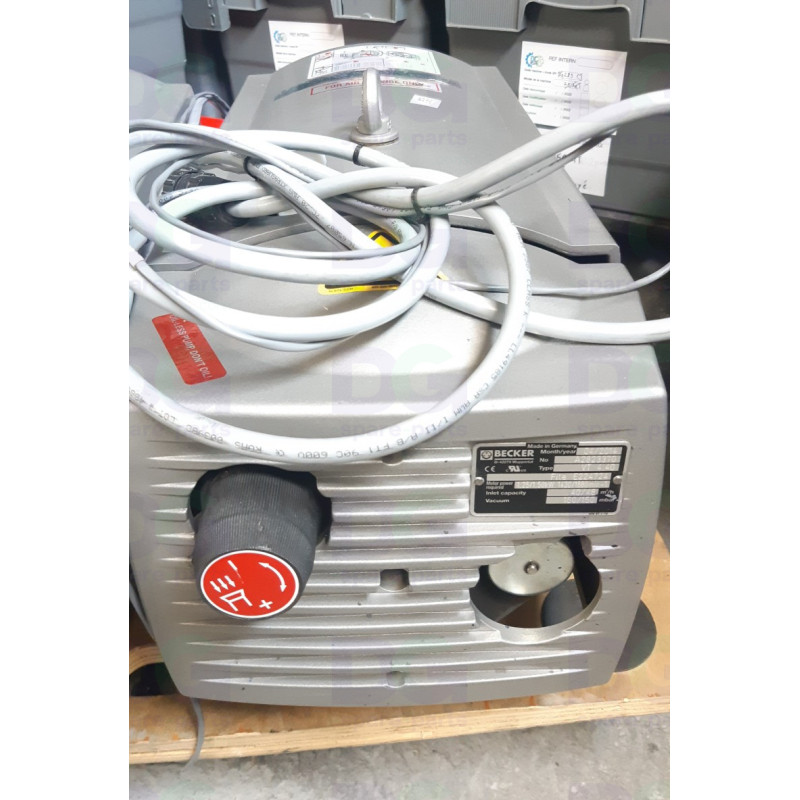

3010116010 - Arizona 6100 Assy Vacuum Pump VT4.40

Ref: 23-OCE1446-o

-60%

3010116010 - Arizona 6100 Assy Vacuum Pump VT4.40

✔️ Type: Vacuum pump VT4.40
✔️ OEM ref: 3010116010
✔️ Generates the vacuum needed to hold the media flat on the table during printing
✔️ Compatible: Canon Océ Arizona 61xx, Fujifilm Acuity
✔️ Brand: Canon Océ

~~Regular price: €1,186.00~~

€474.40 Save 60%

VAT excluded

New or refurbished at the best price
Fast shipping within 24 hours
Worldwide delivery

Rate us on

Product description

3010116010 – Vacuum pump VT4.40 (Arizona 6100) – Canon Océ

The 3010116010 vacuum pump (Arizona 6100 Assy Vacuum Pump VT4.40) is fitted to Canon Océ Arizona 6100 and Fujifilm Acuity printers.

It generates the vacuum needed to hold the media flat on the table during printing, keeps rigid or flexible media stable for print accuracy, runs as a continuous dry (oil-free) vane pump and feeds the print-zone vacuum circuit via the assembled motor-pump unit.

Technical specifications

OEM reference: 3010116010
Manufacturer: Canon Océ
Part type: Vacuum pump VT4.40
Type: Dry-running vane pump (oil-free)
Shipping: Shipped ready to install

Compatibility & use

Canon Océ Arizona 61xx
Fujifilm Acuity

Function

Generates the vacuum needed to hold the media flat on the table during printing
Keeps rigid or flexible media stable for print accuracy
Runs as a continuous dry (oil-free) vane pump for a constant vacuum level
Feeds the print-zone vacuum circuit via the assembled motor-pump unit

Signs of wear

Insufficient media hold-down
Media moving during printing
Loss of vacuum
Print offsets

Replacing this part restores the machine to proper working order.

Manufacturer specifications

Component manufacturer : Becker
Power : 1,25 / 1,50 kW
Speed : 1430 / 1680 min⁻¹
Flow rate : 40 / 48 m³/h
Maximum vacuum : 150 / 150 mbar
Certification : UL File E224724 · CE · cULus
Manufactured in : Wuppertal, Allemagne
Motor : Dietz-motoren — Type FDR 90S / 95 / 4 P
Power supply : 190-265 / 330-440 V (Δ) · 190-290 / 330-500 V (λ)
Current : 5,2-6,2 / 3,0-3,6 A · 6,9-5,7 / 4,0-3,3 A
Power factor (cos φ) : 0,88-0,64 · 0,92-0,70
Frequency : 50 / 60 Hz
Duty type : S1 (service continu)
Thermal protection : 3 bimétalliques, coupure 150 °C
Protection rating : IP55 · Th.Cl. 155 (F) · AMB 45 °C
Standard : IEC EN 60034
Vane wear limit : remplacer les palettes à 28 mm (contrôle toutes les 3 000 h)
