Cartridge Frame 33 Assy - M007623

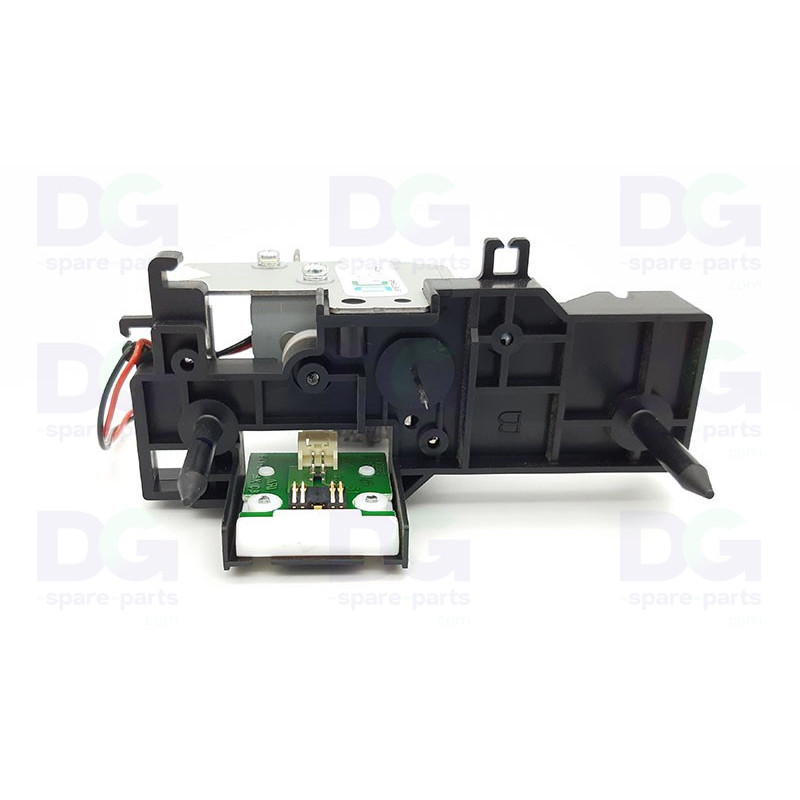

M007623 – Cartridge frame (Cartridge Frame 33 Assy) – Mimaki CJV30

The M007623 cartridge frame (Cartridge Frame 33 Assy) is fitted to Mimaki CJV30-130 printers.

It supports and positions the ink cartridges in their housing for a reliable connection to the ink circuit. A worn frame causes mechanical play and loss of accuracy.

Technical specifications

• OEM reference: M007623
• Manufacturer: Mimaki
• Part type: Ink cartridge frame
• Shipping: Shipped ready to install

Compatibility & use

• Mimaki CJV30

Function

• Supports and positions the ink cartridges
• Ensures a reliable connection to the ink circuit
• Contributes to the mechanical stability of the housing

Signs of wear

• Mechanical play or wear
• Stiff or jerky movement
• Mechanical noise
• Loss of accuracy

Replacing this part restores the machine to proper working order.
