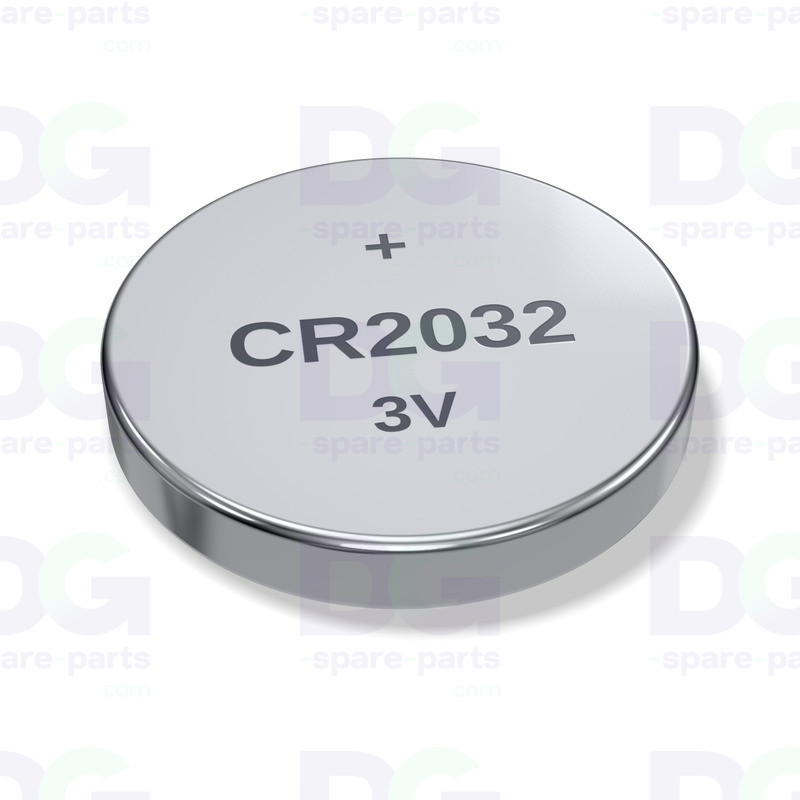

CR2032 – 3 V lithium button cell battery

3 V lithium button cell – Large-format printers – CR2032

The CR2032 lithium button cell powers the backup circuit on electronic circuit boards when the machine is switched off. It is found on the motherboards of control PCs, RIP stations and certain control boards for large-format printers and plotters.

It maintains the real-time clock (RTC) and the BIOS/CMOS memory once the mains power is cut off. A battery in good condition ensures a restart without any loss of date, time or start-up settings.

The battery is sold on its own, without a holder or connector. Before ordering, please check that your old battery is marked CR2032 and that it clips into a holder without any soldered tabs.

Technical specifications

• Part number: CR2032 (standard designation IEC 60086)
• Equivalent designations: DL2032, ECR2032
• Chemistry: Lithium / manganese dioxide (Li-MnO2), non-rechargeable
• Nominal voltage: 3 V
• Capacity: approximately 210 to 240 mAh depending on the manufacturer
• Dimensions: Ø 20 mm × 3.2 mm thick
• Weight: approx. 3 g
• Delivery: Battery only, without holder or connector
• Application: RTC/BIOS backup for electronic circuit boards

Compatibility and use

• Control PCs and RIP stations for large-format printers
• Motherboards fitted with a CR2032 battery socket
• Control boards for plotters and printers using a CR2032 backup battery
• All brands: check the marking on the existing battery before replacing it

Function

• Power supply to the real-time clock (RTC) when the machine is switched off
• Preservation of BIOS/CMOS settings (boot order, hardware configuration)
• Maintains the date and time used for job and log time-stamping
• Backing up data in volatile memory on boards equipped with such memory

Possible symptoms of wear and tear

• Date and time reset on every start-up
• Error message when the PC starts up (CMOS checksum error, CMOS battery low)
• Loss of BIOS settings and boot failure or boot from the wrong device
• Inconsistent timestamps on files, print jobs or logs

Replacing the CR2032 battery at the first signs of weakness prevents loss of configuration and system crashes when the control unit restarts.
