1000001524 - XC-540 Clamp Media Plate R

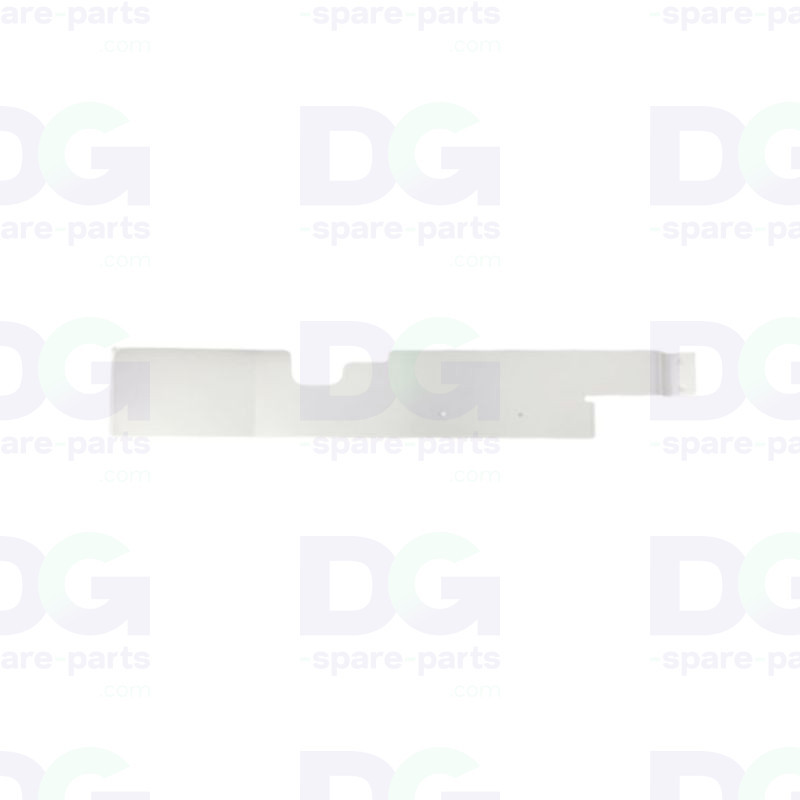

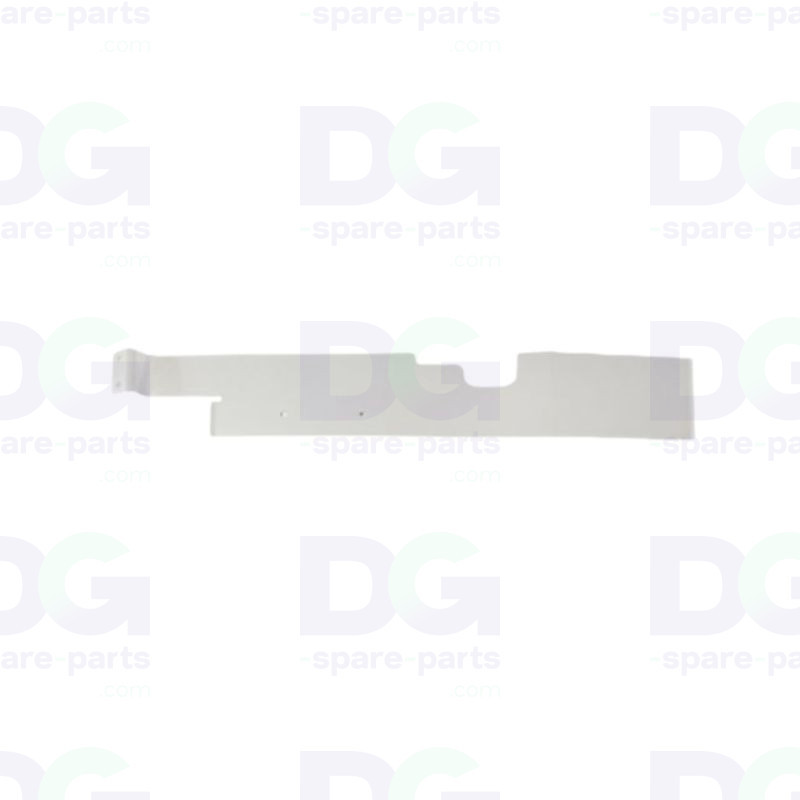

Clamp Media Plate R — Roland XC-540 / XR-640 — 1000001524

The Clamp Media Plate R (part no. 1000001524) is the right-hand media clamp plate fitted to Roland large-format printers/cutters. It keeps the right-hand edge of the media flat during printing and cutting, preventing the media from lifting or curling.

This media guide simultaneously protects the edge of the media and the print head by preventing the media from curving upwards in the carriage path. Proper edge support prevents head strikes (collisions between the head and the media), which can cause irreparable damage to the print head.

Genuine Roland DG part, sold individually (right-hand side). The left-hand side plate (L) is available under part number 1000001523.

Technical specifications

• OEM part number: 1000001524
• Left-hand plate part number: 1000001523 (sold separately)
• Type: Right-hand media clamp plate (Clamp Media Plate R)
• Position: Right-hand side — edge of the media
• Packaging: Sold individually
• Function: Holds the right edge of the media and protects the print head
• Origin: Roland DG OEM part

Compatibility and use

• Roland XC-540
• Roland XC-540MT
• Roland XR-640

Function

• Keeps the straight edge of the media flat during printing and cutting
• Prevents the media from lifting or curling in the print area
• Protects the print head from head strikes (collisions with the media)
• Guides the media for smooth feeding without lateral misalignment
• Ensures a consistent print distance across the entire width of the media

Possible symptoms of wear

• Media edges lifting during printing
• Head strikes on the right-hand side of the media
• Plate is warped, broken or no longer holds the media correctly
• Abnormal friction marks on the edges of the prints
• Lateral misalignment of the media during feed

Replacing the Clamp Media Plate R restores effective holding of the right edge of the media and protects the print head from collisions, thereby preventing costly damage.
