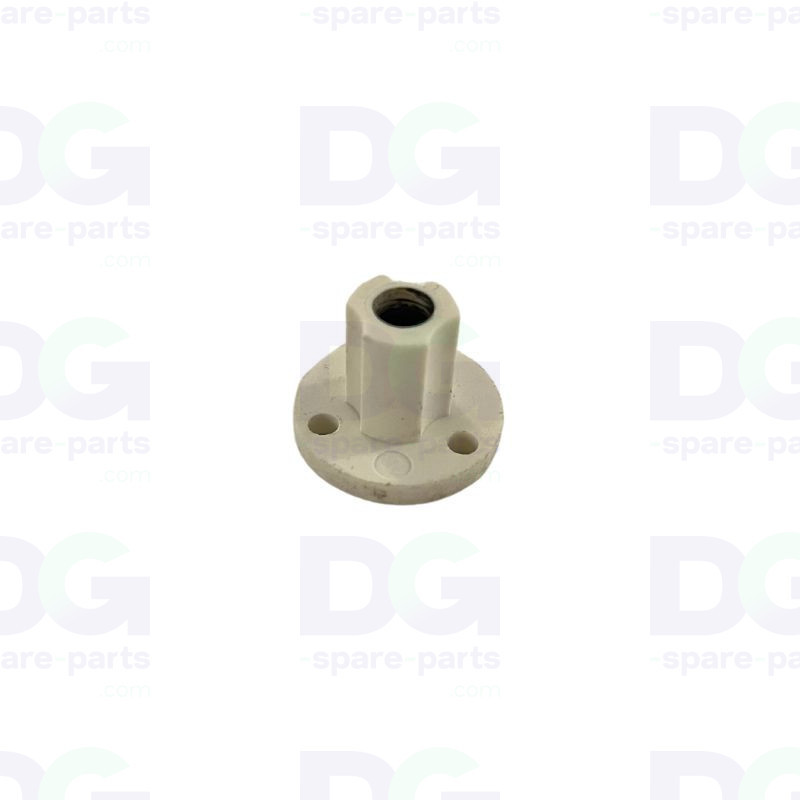

Jacking nut – Z-axis upgrade kit (3010106565)

The jacking nut Z-axis upgrade kit (3010106565) replaces the lifting nut on the leadscrew of the Z-axis linear stepper motor (3010122744) on Canon Océ Arizona and Fujifilm Acuity Advance UV flatbeds. This threaded nut converts motor rotation into vertical travel of the print table and sets the precise gap between the media and the printheads. A worn nut causes Z-axis play; this kit restores original accuracy without replacing the whole motor.

Technical specifications

• OEM reference: 3010106565
• Manufacturer: Canon (Océ)
• Part type: Z-axis jacking nut, upgrade kit (for stepper motor 3010122744)
• Kit for: Z-axis linear stepper motor 3010122744
• Axis: Z (table height)
• Kit type: Upgrade — nut replacement, motor kept
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Canon Océ Arizona 5xx
• Canon Océ Arizona 6xx
• Canon Océ Arizona 12xx
• Canon Océ Arizona 22xx
• Fujifilm Acuity

Function

• Converts stepper rotation into vertical table movement
• Sets the precise media-to-head gap
• Keeps a constant jetting distance across the print area
• Compensates for rigid-media thickness variations
• Ensures stable, play-free vertical table positioning

Signs of wear

• Noticeable Z-axis play — unstable table height
• Z-axis positioning error on the control panel
• Uneven print quality across zones (localised blur)
• Variable jetting distance causing resolution defects
• Abnormal noise during table height adjustment

Replacing this part restores the machine to proper working order.
