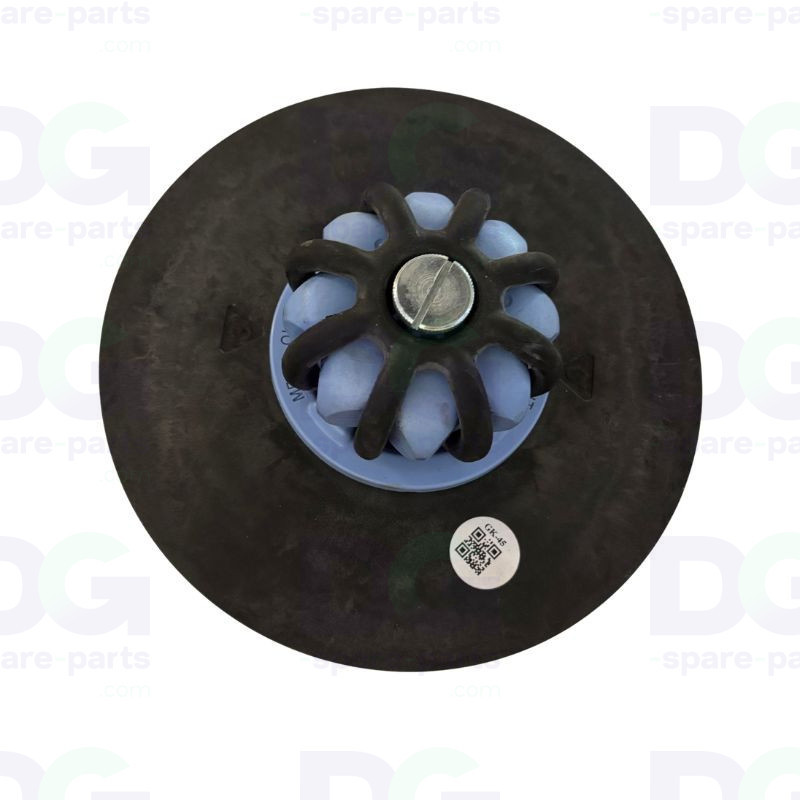

M0E29-67041 - Substrate input/output drive hub assembly (without locking screw)

Substrate input/output transmission hub assembly

The substrate input/output transmission hub assembly (part number M0E29-67041 is the right-hand hub that holds the substrate reels, both input and output, in the HP Latex 560 and 570 printers.

This part plays a critical technical role in the machine’s operation. Replacing it restores the equipment to its original performance.

Component function

• Supports the substrate roll on the right-hand side, both at the input and
output• Compatible with 2-inch and 3-inch mandrels•
Transmits drive to the roll via the
assembly’s gear wheel• Keeps the roll centred and driven during media unwinding and rewinding

Part numbers

OEM part number: M0E29-67041

Machine compatibility

• HP Latex
560• HP Latex 570

Important technical information

• Type: drive hub assembly, right-hand substrate input/output hub•
OEM part number:
M0E29-67041• Mandrels: 2-inch and
3-inch• Delivery: genuine HP part, sold without the rear locking screw

Possible symptoms of failure

• Roll slipping or no longer being driven•
Abnormal play or noise on the right-hand side of the roll•
Chuck not held securely or misaligned•
Incorrect tension or uneven winding of the substrate
