3010103717 - Océ Arizona Gantry Drive DC Servo Motor

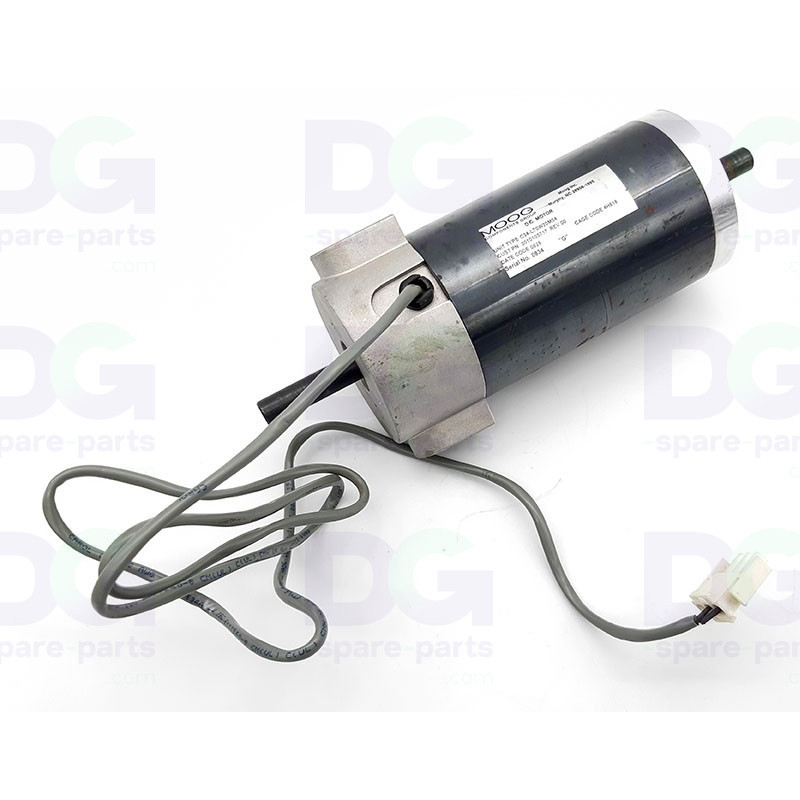

3010103717 – DC servo drive motor (Gantry/Carriage Drive Motor) – Canon Océ Arizona

The 3010103717 DC servo drive motor (Gantry/Carriage Drive Motor) is fitted to Canon Océ Arizona 200 to 360 GT/XT flatbed printers and Fujifilm Acuity Advance HD.

It provides the motorised movement of the gantry or the carriage during printing. As a DC servo motor with position feedback, it ensures a precise, steady travel. A failing motor causes travel errors and machine stops.

Technical specifications

• OEM reference: 3010103717
• Manufacturer: Canon Océ
• Part type: DC servo drive motor
• Dual use: Gantry drive motor or carriage drive motor
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Fujifilm Acuity

Function

• Drives the movement of the axis (gantry or carriage)
• Ensures a precise and steady positioning
• DC servo motor with position feedback
• Contributes to the print accuracy and quality

Signs of wear

• Axis jammed or jerky
• Positioning or travel errors
• Abnormal noise or vibration
• Axis-related machine shutdowns

Replacing this part restores the machine to proper working order.
