1000018516 + 22565406 - Wiper motor (including pulley) Roland RF-640

1000018516 – Roland RF-640 wiper motor

The Roland SH1421-5042 motor – OEM ref. 1000018516 (also 22435106 / ‘103-593-1041’) drives the wiper system on the maintenance station.

Via its toothed pulley, it drives the mechanism that cleans the print head nozzles during maintenance cycles. A faulty motor prevents the print heads from being wiped correctly and impairs print quality.

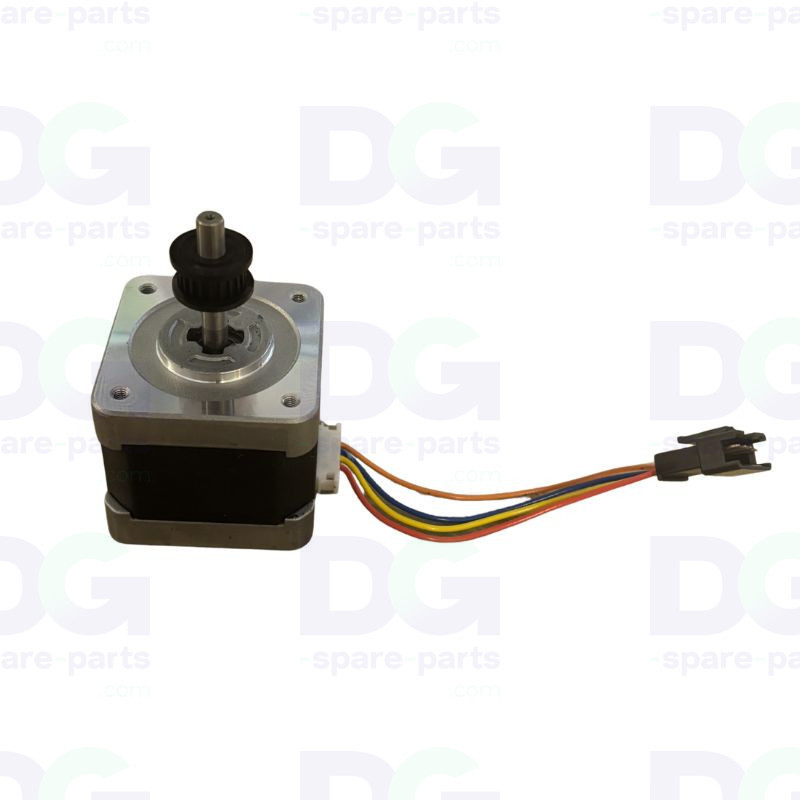

Genuine Roland (OEM) part, supplied with its cable; bracket and toothed drive pulley (part no. 22565406) fitted, as shown in the photograph.

Technical specifications

• OEM reference: 1000018516 (variant 22435106)
• Manufacturer: Roland
• Part type: Wiper drive motor (with pulley)
• Motor designations: SH1421-5042 / 103-593-1041
• End piece: toothed drive pulley – ref. 22565406 (DRIVE PULLEY)
• Origin: Roland original equipment (OEM)
• Shipping: Shipped ready to install

Compatibility & use

• Roland RF-640 / RF-640A
• Roland VS-640i / VS-540i / VS-300i
• Roland RA-640 / RE-640

Function

• Drives the wiper mechanism on the print heads
• Transmits movement via its toothed pulley and the wiper belt
• Controlled by the maintenance station’s electronics
• Ensures regular and reliable wiping cycles

Signs of wear

• Wiper no longer moves
• Ineffective print head cleaning
• Clogged nozzles / degraded print quality
• Maintenance error signalled by the machine

Replacing the wiper motor restores head wiping and maintains print quality.
