3010122744 – Z-Axis Stepper Linear Motor

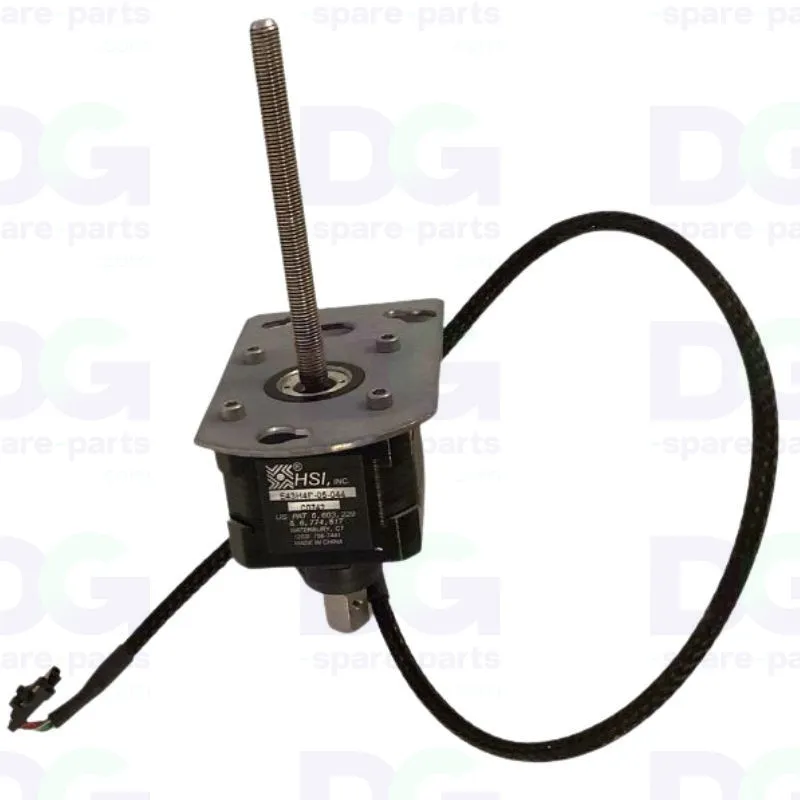

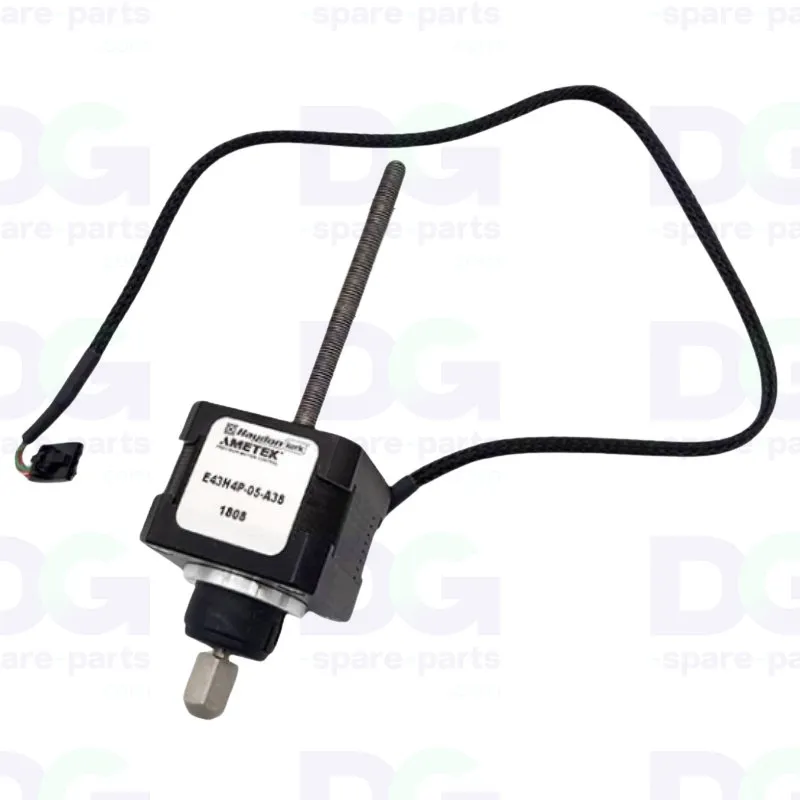

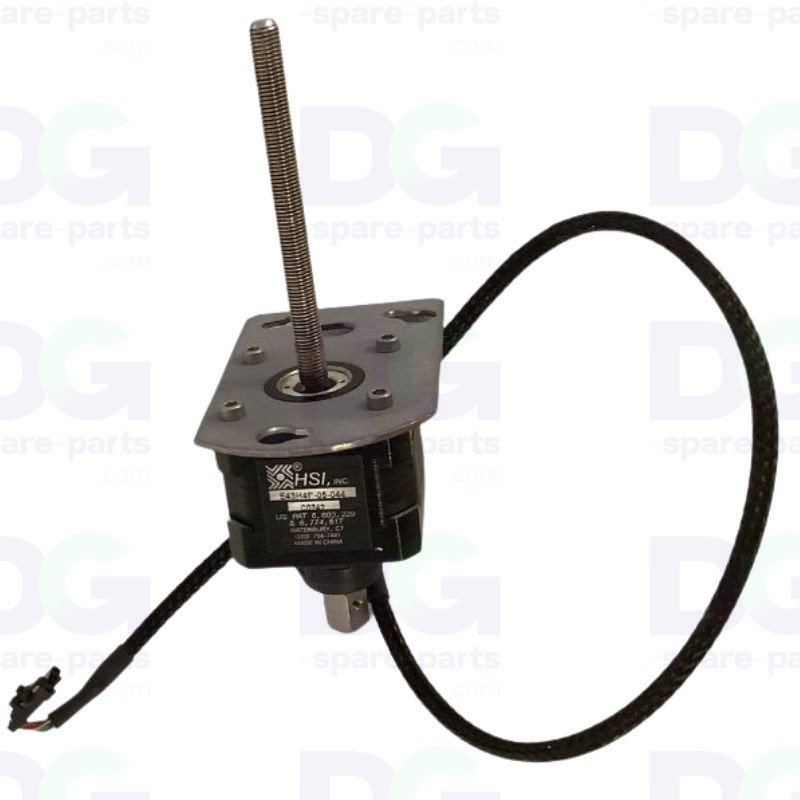

Z-axis linear stepper motor – 3010122744

The Z-axis linear stepper motor (3010122744) drives the vertical (Z-axis) movement of the carriage or table on large-format industrial printers. It gives precise, repeatable positioning for print-height adjustment, head protection and overall output quality.

Technical specifications

• OEM reference: 3010122744
• Manufacturer: Canon (Océ)
• Part type: Z-axis linear stepper motor (Z-Axis Stepper Linear Motor)
• Replaced reference: 3010106557
• Motor models: E43H4P-05-A38 / E43H4P-05-044
• Axis: Z
• Note: Replacement by a qualified technician, with Z-axis recalibration after installation.
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 2xx
• Canon Océ Arizona 3xx
• Canon Océ Arizona 5xx
• Canon Océ Arizona 6xx
• Canon Océ Arizona 12xx
• Canon Océ Arizona 22xx
• Fujifilm Acuity

Function

• Controlled vertical Z-axis movement
• Precise print-height adjustment
• Mechanical protection of the printheads
• Direct contribution to print accuracy and repeatability

Signs of wear

• Height errors
• Risk of collision with the media
• Print defects
• Faulty Z-axis motor

Replacing this part restores the machine to proper working order.

♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
