3010121244 - Manifold vacuum carriage

3010121244 – Carriage vacuum manifold (Manifold Vacuum Carriage) – Canon Océ Arizona 61xx

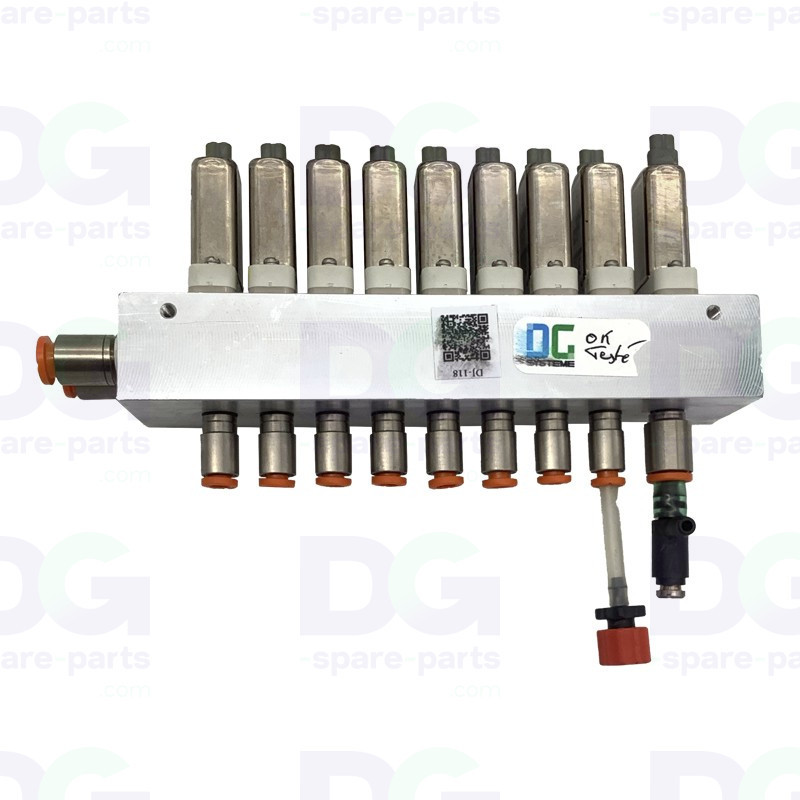

The 3010121244 carriage vacuum manifold (Manifold Vacuum Carriage) is fitted to Canon Océ Arizona 6160/6170 XTS printers (and Fujifilm Acuity F66/F67).

It distributes the vacuum at the carriage and takes part in the media hold and the air circulation. A failing manifold causes a loss of vacuum.

Technical specifications

• OEM reference: 3010121244
• Manufacturer: Canon Océ
• Part type: Carriage vacuum manifold
• Shipping: Shipped ready to install

Compatibility & use

• Canon Océ Arizona 61xx
• Fujifilm Acuity

Function

• Distributes the vacuum to the carriage or heads
• Ensures the media hold or the air circulation
• Key element of the vacuum circuit

Signs of wear

• Loss of vacuum or suction
• Media poorly held
• Leaks in the vacuum circuit
• Fouled or cracked manifold

Replacing this part restores the machine to proper working order.
