MP-E106658 - 3 Directional Solenoid Valve Assy

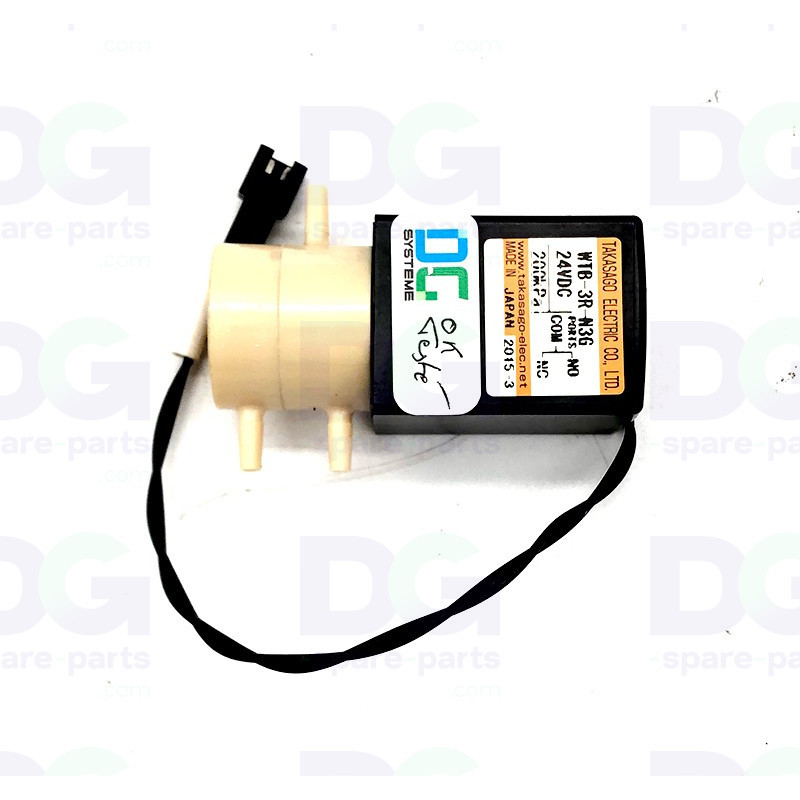

MP-E106658 – 3-way pneumatic solenoid valve – Mimaki / Fujifilm

The MP-E106658 3-way pneumatic solenoid valve is fitted to Mimaki and Fujifilm printers.

It switches and directs the compressed-air flow between several pneumatic circuits (ink supply, purge, head maintenance), opens/closes a circuit under electrical command, enables sequenced pressurisation or venting of the sub-systems and helps regulate and isolate the pneumatic circuits.

Technical specifications

• OEM reference: MP-E106658
• Manufacturer: Mimaki
• Part type: 3-way pneumatic solenoid valve
• Shipping: Shipped ready to install

Compatibility & use

• Fujifilm Acuity
• Mimaki UJF-7151 Plus

Function

• Switches and directs the compressed-air flow between several pneumatic circuits (ink supply, purge, head maintenance)
• Opens/closes a circuit under electrical command from the main board
• Enables sequenced pressurisation or venting of the sub-systems
• Helps regulate and isolate the pneumatic circuits to protect downstream components

Signs of wear

• Faulty pneumatic circuit
• Air leaks
• Faulty purge or pressurisation
• Uncommanded switching

Replacing this part restores the machine to proper working order.
