Absorption Fan Assy - E300482

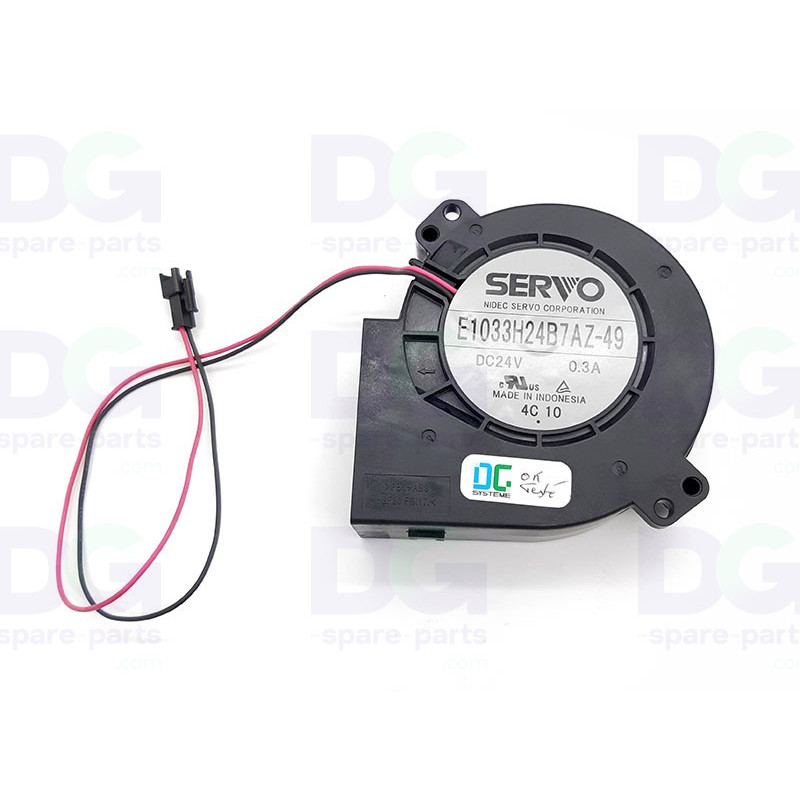

E300482 – Absorption fan (Absorption Fan Assy) – Mimaki

The E300482 absorption fan (Absorption Fan Assy) is fitted to many Mimaki printers (CJV30, JF, JFX, JV5, JV33, TS3, TS5 and UJV series).

It creates the vacuum that holds the media on the platen to keep it flat during printing. A failing fan leaves the media poorly held.

Technical specifications

• OEM reference: E300482
• Manufacturer: Mimaki
• Part type: Platen absorption fan
• Shipping: Shipped ready to install

Compatibility & use

• Mimaki CJV30
• Mimaki JF
• Mimaki JFX
• Mimaki JV5
• Mimaki JV33
• Mimaki TS3
• Mimaki TS5
• Mimaki UJV

Function

• Creates the vacuum that holds the media on the platen
• Keeps the media flat during printing
• Contributes to the print accuracy and quality

Signs of wear

• Media poorly held or lifting
• Loss of suction
• Heads catching the media
• Print defects or jams

Replacing this part restores the machine to proper working order.
