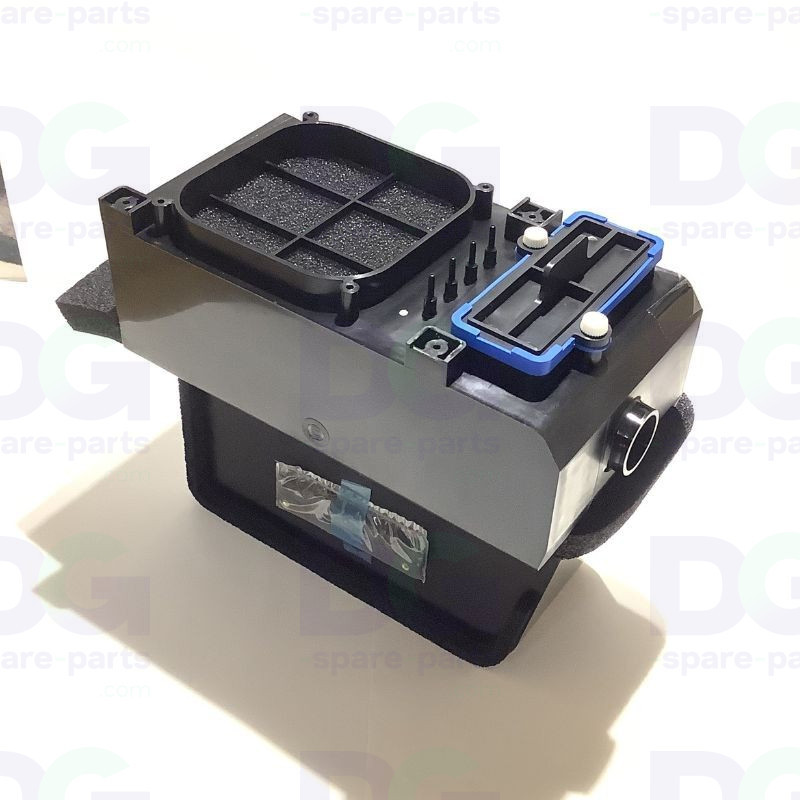

M007053 - Sucker fan box assy

M007053 – Media suction fan box (Sucker Fan Box Assy) – Mimaki JV5 / TS5

The M007053 media suction fan box (Sucker Fan Box Assy) is fitted to Mimaki JV5 and TS5 printers.

It provides the suction to hold the media flat under the heads. A failing box causes a loss of media hold.

Technical specifications

• OEM reference: M007053
• Manufacturer: Mimaki
• Part type: Media suction fan box
• Shipping: Shipped ready to install

Compatibility & use

• Mimaki JV5
• Mimaki TS5

Function

• Provides the suction to hold the media flat
• Keeps the media in place under the heads
• Contributes to the print quality and reliability

Signs of wear

• Loss of suction or media hold
• Media lifting under the heads
• Abnormal noise or stopped fan
• Insufficient suction

Replacing this part restores the machine to proper working order.
