CZ151-50043 - Presence sensor cable (substrate)

MEDIA SENSOR CABLE

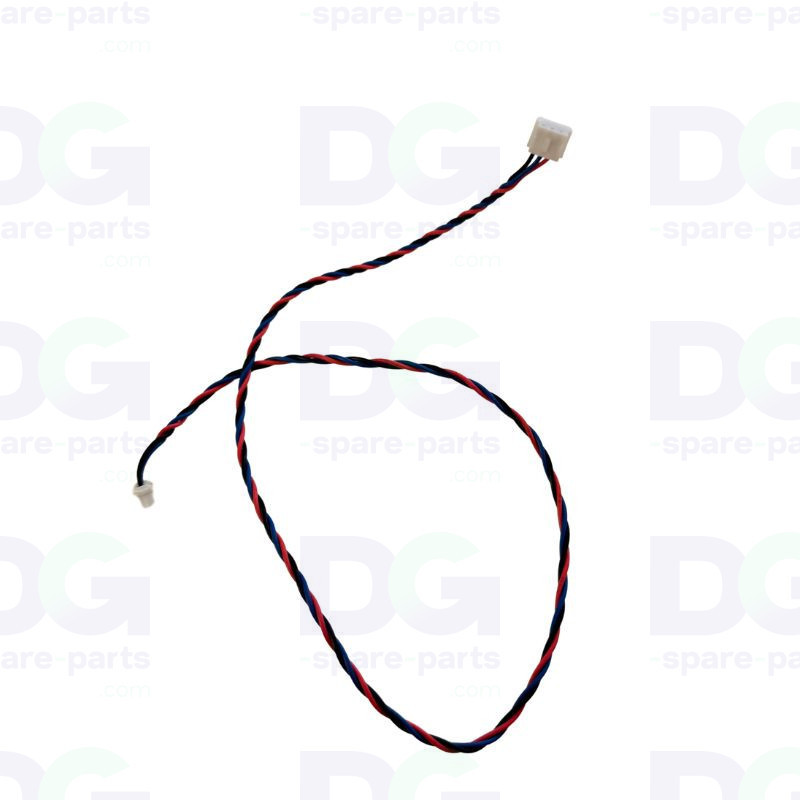

The media sensor cable (part number CZ151-50043) connects the optical media feed sensor to the circuit board in HP Latex 560 and 570 printers.

It powers the sensor and transmits information about the presence of the substrate to the machine. Replacing it restores media detection when the connection is broken, crimped or damaged.

Component function

• Powers the optical
substrate presence sensor• Transmits substrate detection information to the machine at the input•
Enables the drive roller to engage during loading•
Enables printing to stop when the substrate runs out

Part numbers

OEM part number: CZ151-50043

Machine compatibility

• HP Latex
560• HP Latex 570

Important technical information

• Type:
substrate presence sensor cable• OEM part number:
CZ151-50043• Origin: genuine HP part (OEM)

Possible symptoms in the event of a fault

• The inserted substrate is not detected during
loading• The drive roller does not start when the media is inserted•
Printing is interrupted as if the substrate had run out•
Intermittent detection (loose connection, damaged cable)
