23475205 - high-voltage IDC ribbon cable

CABLE CARD 12P1 2510L BB

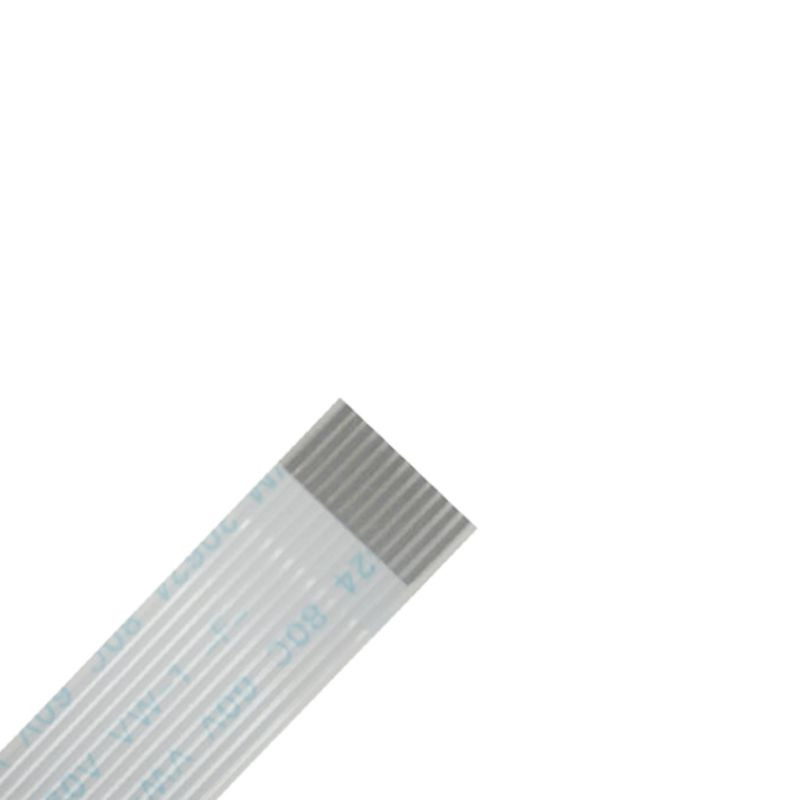

The CABLE CARD 12P1 2510L BB reference 23475205 is a high-voltage IDC ribbon cable used in Roland cutting plotters.

This component plays a critical technical role in the machine's operation. Replacing it restores the equipment's original performance.

Component Function

• Signal transmission between electronic boards
• Carriage / main board link
• High-voltage cable shielded against interference
• Secure IDC connector

References

OEM Reference: 23475205

Machine Compatibility

• Roland VS-640
• Roland VS-540
• Roland XR-640
• Roland RA-640
• Roland RE-640

Important Technical Information

• Type : high-voltage IDC ribbon cable
• OEM reference : 23475205
• Brand : Roland
• Weight : 0.1 kg

Possible Symptoms in Case of Failure

• Communication errors between boards
• Intermittent carriage cut-off
• Erratic display on the panel
• Random failures during printing
