23475240 - High-V Cable- Card 36P1 2670L SP-540V

High-V Cable-Card 36P1 2670L Roland SP-540V — Part No. 23475240

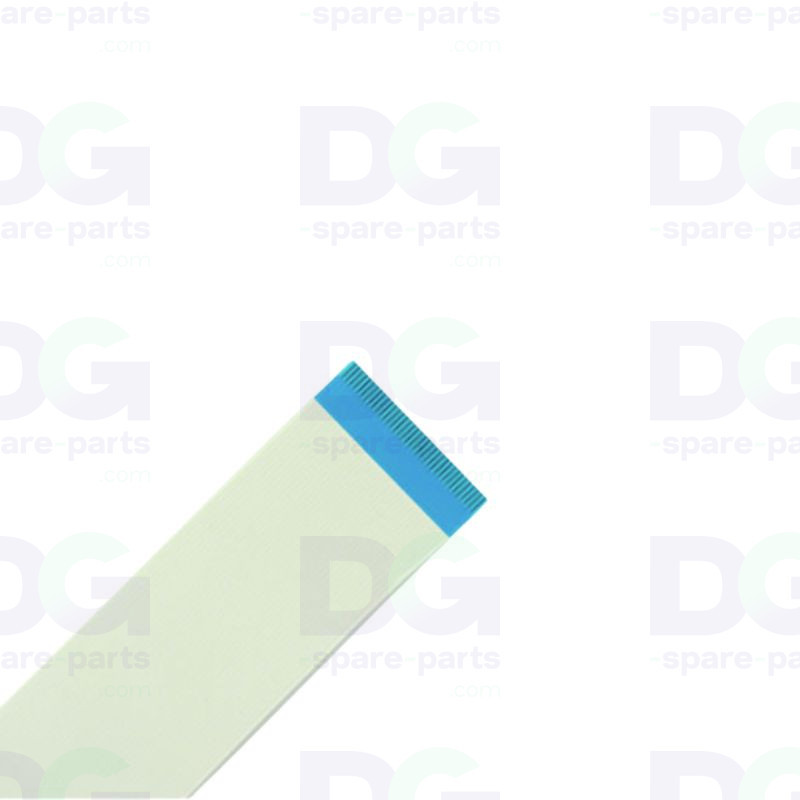

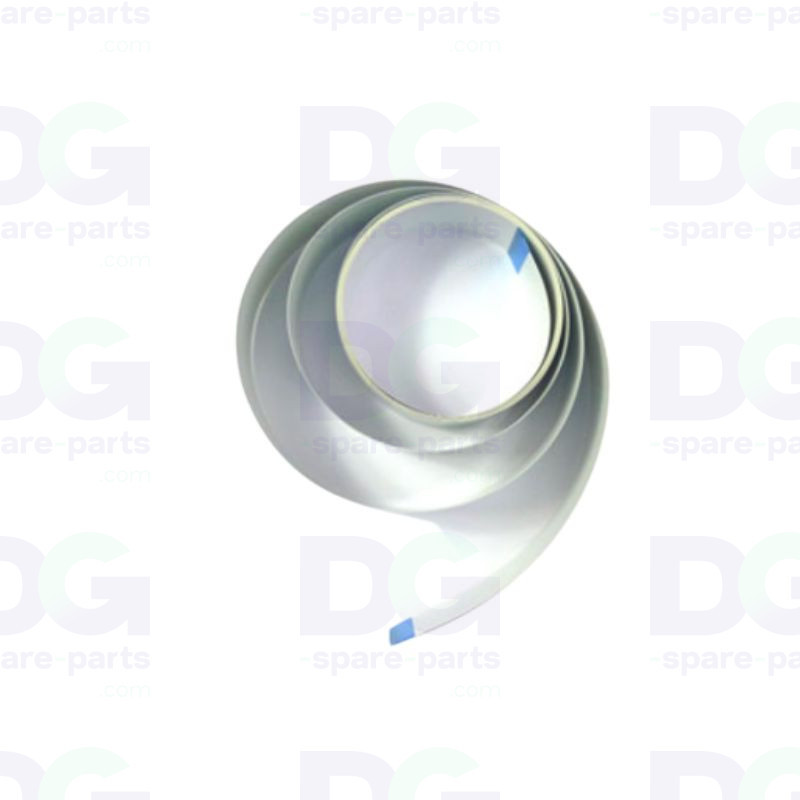

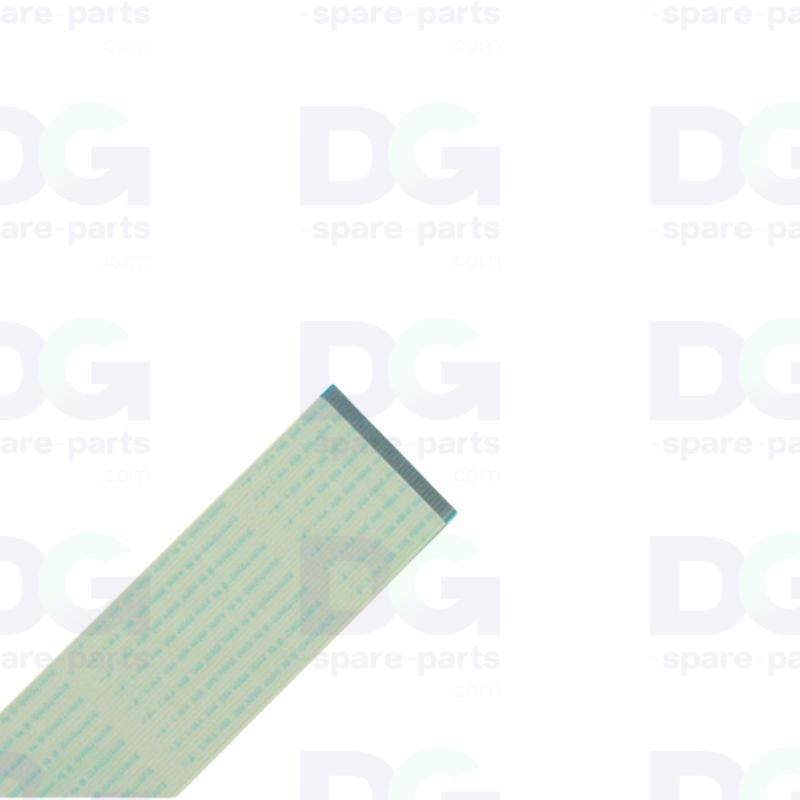

The High-V Cable-Card 23475240 is the original Roland high-voltage flat cable connecting the main board to the print carriage board in Roland large-format printers of the SP-540, VP-540, VS-540 and RS-540 series. This 267 cm long 36-pin FFC cable transmits the high-voltage print data signals required for precise control of the print head during print passes.

A damaged, kinked or oxidised cable can cause signal loss, leading to print defects (banding, missing lines), artefacts or complete print head failure. It is one of the data cables subjected to the most mechanical stress on these models due to its repeated movement as the carriage moves back and forth.

Technical specifications

• Part number: 23475240
• Brand: Roland (original part)
• Type: High-voltage FFC flat cable (High-V Cable-Card)
• Number of pins: 36 pins
• Length: 267 cm (2,670 mm)
• Connection: Main board → Print carriage board

Compatibility

• Roland SP-540i
• Roland SP-540V
• Roland VersaCAMM VP-540
• Roland VersaCAMM VP-540i
• Roland VersaCAMM VS-540
• Roland RS-540

Possible symptoms in the event of a fault

• Banding or missing lines in prints
• Repetitive artefacts or defects on prints
• Partial or total loss of signal to the print head
• Communication errors between the main board and the carriage
• Complete print head failure following gradual deterioration of the cable
