BOARD ASSEMBLY - DF-42520

DF-42520 – Electronic board (Board Assembly) – Mutoh Rockhopper

The electronic board (Board Assembly, DF-42520) is fitted to Mutoh printers. It provides the electronic control of a machine sub-system and passes the signals to the control board.

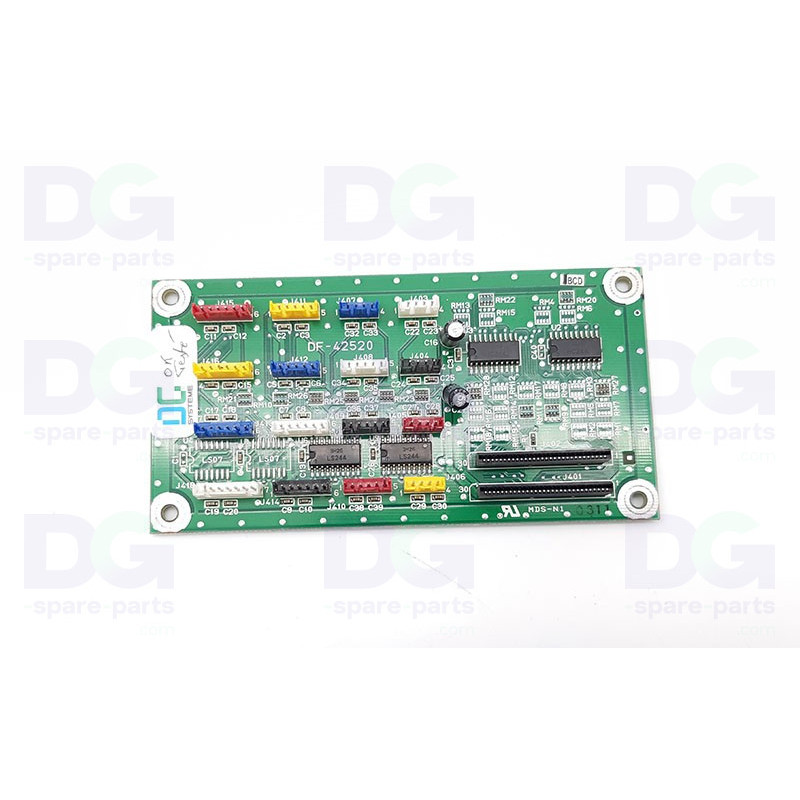

The board carries the DF-42520 silkscreen and the MDS-N1 marking. The Rockhopper II maintenance manual calls it the "Junction Board Assembly": it groups 18 connectors, J401 and J402 to the main board, J403 to J410 for the ink sensors of the 8 colours (K, C, M, Y, LC, LM, O, G) and J411 to J418 for the cables of cartridges 1 to 8.

Technical specifications

• OEM reference: DF-42520
• Manufacturer: Mutoh
• Part type: Electronic control board
• Manufacturer designation: Junction Board Assembly (Rockhopper II maintenance manual)
• Board marking: MDS-N1, silkscreen DF-42520
• Connectors: J401, J402: 30-pin ribbon cables to the main board; J403 to J410: ink sensors K, C, M, Y, LC, LM, O, G; J411 to J418: cables of cartridges 1 to 8
• Components: 2 × 74HC244 and 2 × 74LS244 (bus buffers), 2 × 74LS07 (drivers), 28 resistor networks: junction and signal-conditioning board, without microprocessor
• Location: Right-hand side of the machine, behind the I/H cover and the right side cover; secured by 4 M3×6 screws
• Shipping: Shipped ready to install

Compatibility & use

• Mutoh Rockhopper 3 65
• Mutoh Rockhopper 3 90
• Mutoh Rockhopper II 50
• Mutoh Rockhopper II 64
• Mutoh Rockhopper II 87
• Mutoh Spitfire 65
• Mutoh Spitfire 90
• Disconnect the mains power supply before replacement: an overcurrent would damage the board (manual warning)

Function

• Links the ink sensors of the 8 colours and the cables of the 8 cartridges to the main board
• Conditions the signals between the cartridges and the electronics (74x244 buffers, 74LS07 drivers)
• Provides the electronic control of a sub-system
• Passes the signals to the control board
• Acts as the interface between firmware and hardware

Signs of wear

• Ink not detected or false ink-out alert on one or more colours
• Cartridge not recognised in one or more slots
• Simultaneous fault on several colours, pointing to a failing junction rather than a single sensor
• Sub-system not driven
• Electronic errors
• Loss of internal communication
• Erratic behaviour or machine stops

Replacing this part restores the machine to proper working order.
