5002544 - Sys_Func_board with power-resistor, PN-series

5002544 – System/function board (with power resistor) – Zünd PN

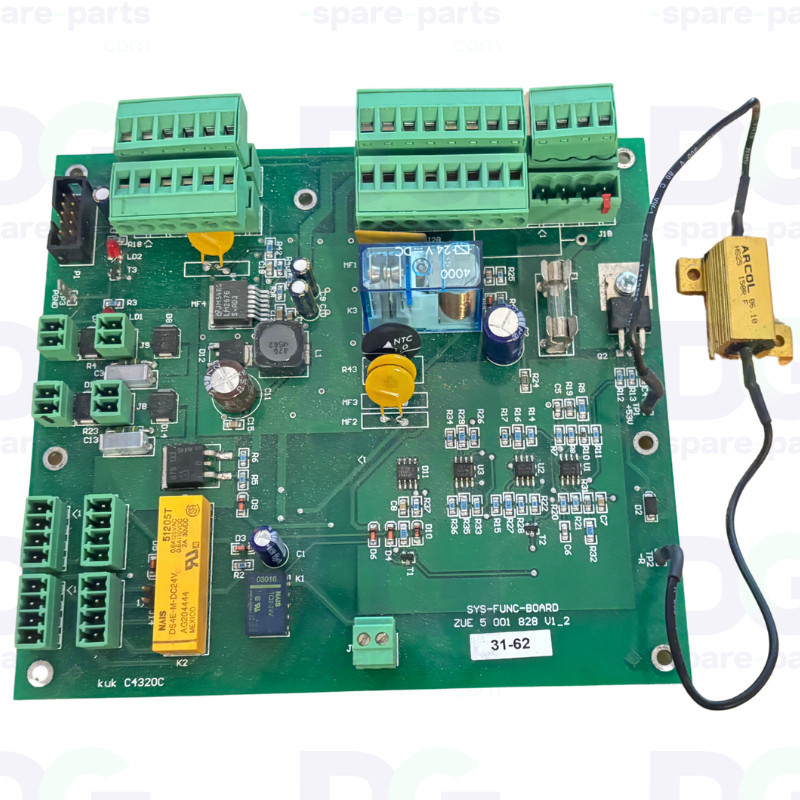

The 5002544 system/function board (Sys_Func_board with power-resistor, PN-series) is fitted to Zünd PN series cutting tables.

It manages the machine system functions and electronic signals, includes a power resistor for the electrical management and acts as the interface between the main board and the functional units. A failing board causes errors and loss of communication.

Technical specifications

• OEM reference: 5002544
• Manufacturer: Zünd
• Part type: System/function board (with power resistor)
• Shipping: Shipped ready to install

Compatibility & use

• Zund PN 2XL
• Zund PN 3XL
• Zund PN L
• Zund PN LH
• Zund PN LR
• Zund PN M
• Zund PN S
• Zund PN XL

Function

• Manages the machine system functions and electronic signals
• Includes a power resistor for the electrical management
• Acts as the interface between the main board and the functional units

Signs of wear

• Electronic errors
• Loss of internal communication
• Sub-system malfunctions
• Diagnostics in error

Replacing this part restores the machine to proper working order.
