PCB-ASSY-SNS1 - U00093087001

U00093087001 – Sensor board (PCB-ASSY-SNS1) – Oki ColorPainter M-64s

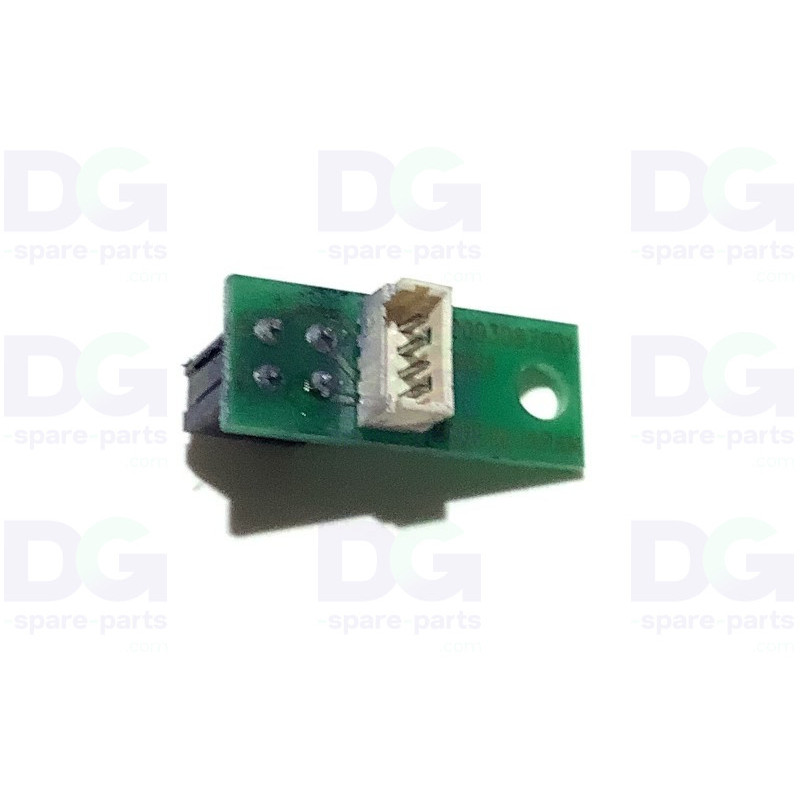

The sensor board (PCB-ASSY-SNS1, U00093087001) is fitted to Oki ColorPainter M-64s printers. It manages the sensor signals and serves as an interface with the main board.

Its manufacturer designation is "PCB-ASSY-SNS1". The OKI IP-6620 maintenance manual (ColorPainter M-64s) references it as "PCB-ASSY-SNS1 (Rear side)" in its disassembly and reassembly procedures: it is fitted at the rear of the machine.

Technical specifications

• OEM reference: U00093087001
• Manufacturer: Oki
• Part type: Sensor board (PCB)
• Manufacturer designation: "PCB-ASSY-SNS1"
• Machine (OKI designation): ColorPainter M-64s ("IP-6620")
• Location: Rear of the machine ("Rear side")
• Shipping: Shipped ready to install

Compatibility & use

• Oki ColorPainter M

Function

• Ensures the electronic control of a sub-system
• Passes the signals to the main board
• Acts as an interface between the firmware and the hardware

Signs of wear

• Sub-system not driven
• Electronic errors
• Loss of internal communication
• Erratic behaviour or machine stops

Replacing this part restores the machine to proper working order.

♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
