PCB ASSY TRC MW ColorPainter M-Series - U00096806200 (U00130610200)

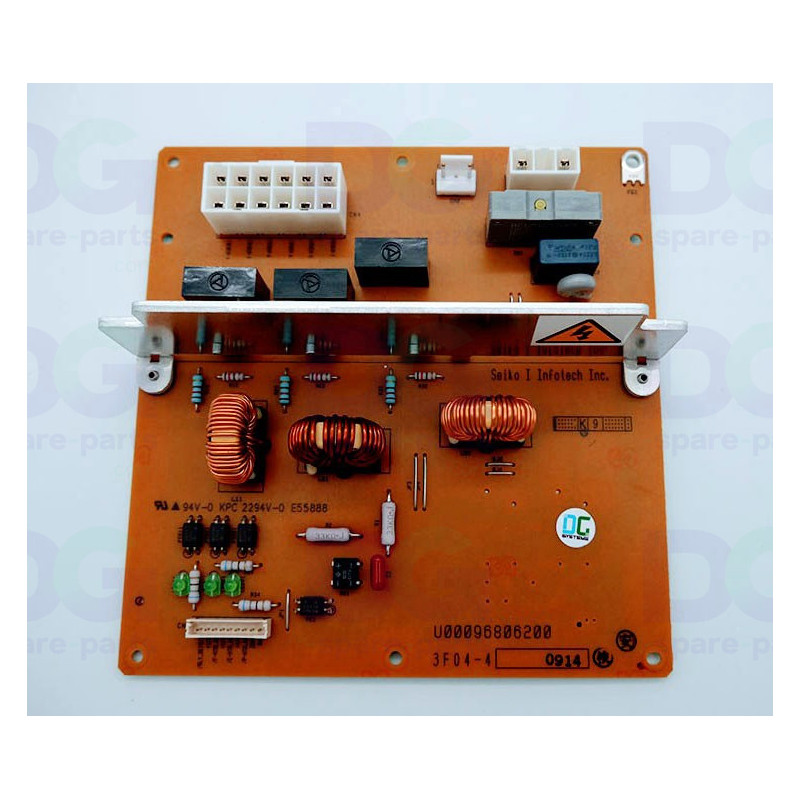

U00096806200 – TRC MW board (PCB Assy) – Oki ColorPainter M-Series

The TRC MW board (PCB Assy, U00096806200) is fitted to Oki-Seiko ColorPainter M-Series printers. It ensures the electronic control of a machine sub-system and passes the signals to the control board.

The ColorPainter service manual lists it among the controller boards (with the IPB main board, the ACT actuator board and the HCB carriage board); loss of its link with the main board triggers system error 1500.

Technical specifications

• OEM reference: U00096806200
• Manufacturer: Oki-Seiko
• Part type: TRC MW control board
• Equivalent references: U00130610200
• Manufacturer designation: PCB-ASSY-TRC (MW variant)
• Location: Controller electronics bay
• Shipping: Ready to install

Compatibility & use

• Oki ColorPainter H3-104s

Function

• Controller board linked to the IPB main board
• Ensures the electronic control of a sub-system
• Passes the signals to the control board
• Acts as an interface between the firmware and the hardware

Signs of wear

• System error 1500 “PCB-ASSY-TRC Connection Error”: check the harness to the main board, otherwise replace the board
• Sub-system not driven
• Electronic errors
• Loss of internal communication
• Erratic behaviour or machine stops

Replacing this part restores the machine to proper working order.
