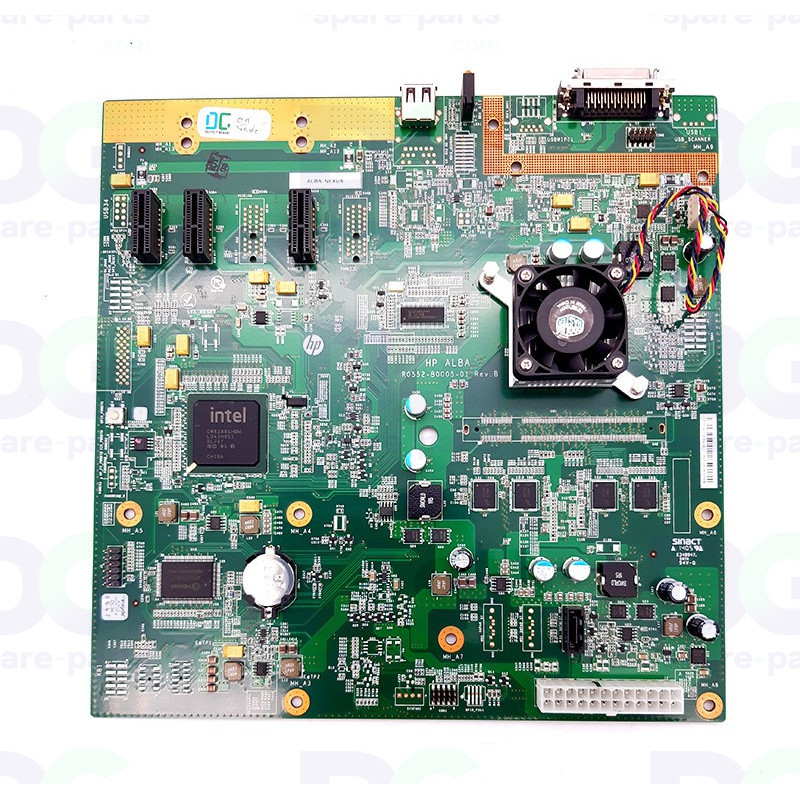

B4H70-67050 - Formatter PCA

B4H70-67050 – Formatter PCA – HP Latex

The B4H70-67050 formatter board (Formatter PCA) is fitted to HP Latex printers.

It acts as the printer main board — controlling the whole system (print-job processing, memory management, firmware) — interfaces with the front panel, centralises the connections to the main internal boards (PCI, OMAS, etc.) and handles the network/USB communications and print-file processing. A failing board prevents start-up.

Technical specifications

• OEM reference: B4H70-67050
• Manufacturer: HP
• Part type: Formatter board (PCA)
• Shipping: Shipped ready to install

Compatibility & use

• HP Latex 1xx
• HP Latex 3xx
• HP Latex 5xx

Function

• Acts as the printer main board: controls the whole system (print-job processing, memory management, firmware)
• Interfaces with the front panel
• Centralises the connections to the main internal boards (PCI, OMAS, etc.)
• Handles the network/USB communications and print-file processing

Signs of wear

• Machine no longer starts
• General system errors
• Print jobs not processed
• Loss of network/USB communication

Replacing this part restores the machine to proper working order.
