Blade compatible with Z28/500-9814/500-0814
✔️ Type: Oscillating blade (tungsten carbide)
✔️ OEM ref: Z28 / 500-9814 / 500-0814 (compatible)
✔️ Precise oscillating cutting of thick materials up to 22 mm
✔️ Compatible: Summa F1432, Summa F1612, Summa F1832 (+28 series)
✔️ Brand: DG Spare Parts
-
New or refurbished at the best price
-
Fast shipping within 24 hours
-
Worldwide delivery
Product description

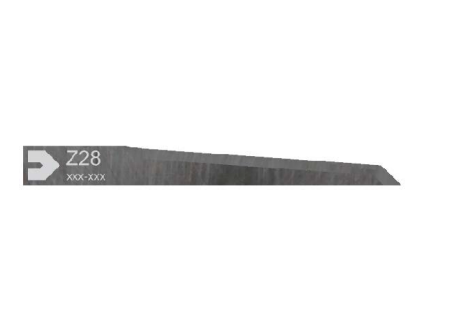

Z28-compatible blade (Summa 500-9814/500-0814) – tungsten carbide
The Z28/500-9814/500-0814-compatible blade is a digital-cutting consumable designed to replace the OEM blade on Zünd and Summa cutting tables.
Made of tungsten carbide, it offers better wear resistance and longer life than HSS blades. With an 84.5° cutting angle and a 22 mm maximum cutting depth, it suits thick materials, corrugated cardboard, foam, foam board, polystyrene and packaging materials.
Compatible with Zünd and Summa F-Series digital cutters, it fits directly into the original blade holder with no modification. Its dimensions (33 mm length × 4 mm width × 0.63 mm thickness) ensure a perfect fit and performance identical to the OEM reference.
Technical specifications
- OEM reference: Z28 / 500-9814 / 500-0814 (compatible)
- Manufacturer: DG Spare Parts
- Part type: Oscillating blade (tungsten carbide)
- Zünd equivalent: Z28
- Summa equivalent: 500-9814 / 500-0814
- Blade material: Tungsten carbide (HM)
- Cutting angle: 84.5°
- Max cutting depth: 22 mm
- Dimensions: 33 mm (length) × 4 mm (width) × 0.63 mm (thickness)
- Fitting: Direct into the original Zünd or Summa blade holder
- Shipping: Shipped ready to install
Compatibility & use
- Summa F1432
- Summa F1612
- Summa F1832
- Summa F3220
- Summa F3232
- Zund D3 2XL
- Zund D3 3XL
- Zund D3 L
- Zund D3 XL
- Zund G3 2XL
- Zund G3 3XL
- Zund G3 L
- Zund G3 M
- Zund G3 XL
- Zund L3 C
- Zund LC
- Zund LC-16/52
- Zund LC-27/32
- Zund LC series
- Zund PN 2XL
- Zund PN 3XL
- Zund PN L
- Zund PN LH
- Zund PN LR
- Zund PN M
- Zund PN S
- Zund PN Series
- Zund PN XL
- Zund S3 L
- Zund S3 M
- Zund S3 XL
Function
- Precise oscillating cutting of thick materials up to 22 mm
- Cuts corrugated cardboard and foam with controlled overcut
- Handles foam board and thick polystyrene
- Cuts packaging materials needing depth and finesse
Signs of wear
- Incomplete cut on the thickest materials
- Wavy or non-square edges in dense materials
- Blade deviation on long paths
- Material residue build-up on the cutting edge
Replacing this blade regularly keeps cut quality consistent, reduces machine downtime and avoids waste from imprecise cutting.
♻️ DG Spare Parts – European specialist in spare parts for large-format printers and plotters.
Compatibility
| Compatible with Summa® | Summa F1432Summa F1612Summa F1832Summa F3220Summa F3232 |
|---|---|
| Compatible with Zund® | Zund D3 2XL-3200Zund D3 3XL-3200Zund D3 L-3200Zund D3 XL-3200Zund G3 2XL-1600Zund G3 2XL-3200Zund G3 3XL-1600Zund G3 3XL-2500Zund G3 3XL-3200Zund G3 L-2500Zund G3 L-3200Zund G3 M-1600Zund G3 M-2500Zund G3 XL-1600Zund G3 XL-3200Zund L3 C-40Zund L3 C-56Zund LC seriesZund LC-1400Zund LC-16/52Zund LC-1800Zund LC-2400Zund LC-2600Zund LC-27/32Zund LC-5200Zund PN 2XL-3000Zund PN 3XL-3000Zund PN L-1200Zund PN L-2500Zund PN L-3000Zund PN L-800Zund PN LH-1600Zund PN LR-1600Zund PN M-1200Zund PN M-1200NLZund PN M-1600Zund PN M-800Zund PN S-800Zund PN SeriesZund PN XL-1200Zund PN XL-1600Zund PN XL-2500Zund PN XL-3000Zund PN XL-800Zund S3 L-1200Zund S3 L-1600Zund S3 M-1200Zund S3 M-1600Zund S3 M-800Zund S3 XL-1200 |
