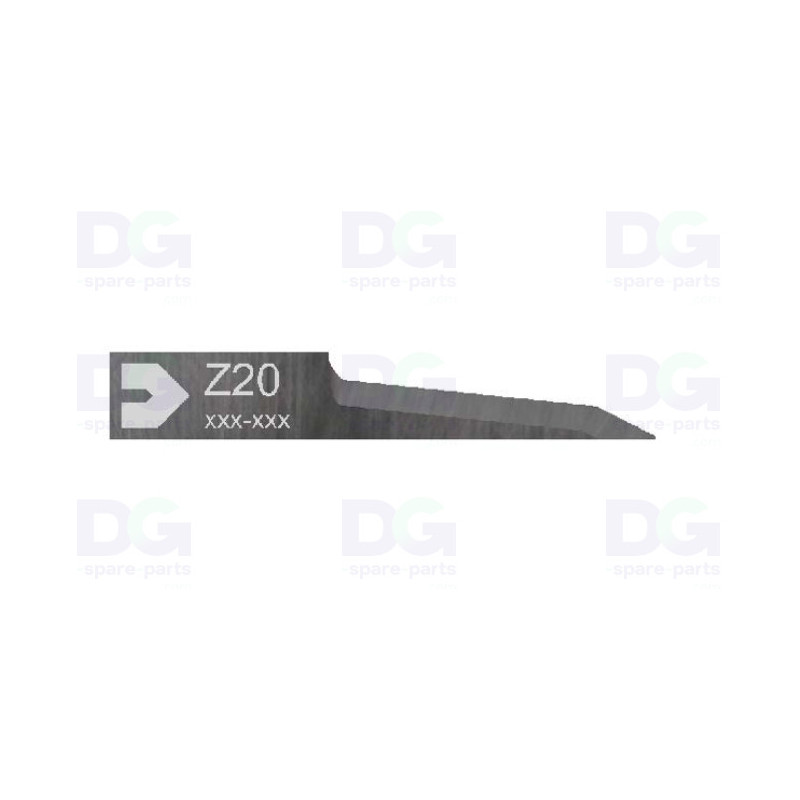

Blade compatible with Z20/500-9812/500-0812

Z20/500-9812/500-0812 compatible blade – Tungsten carbide

The Z20/500-9812/500-0812 compatible blade is a digital cutting consumable designed to replace the original blade on Zund and Summa cutting tables. Made from tungsten carbide, it offers superior wear resistance and longevity compared to high-speed steel (HSS) blades.

With a cutting angle of 84° and a maximum cutting depth of 14.3 mm, this blade is particularly suitable for cutting: small details, small radii, vinyl, paper, flexible cardboard, and thin, flexible materials.

Compatible with Zund and Summa F-Series digital cutting tables, this blade fits directly into the original blade holder without any modification. Its dimensions (28 mm (height) × 0.63 mm (thickness)) ensure a perfect fit and performance identical to the original part.

Technical specifications

• Compatible Zund part number: Z20
• Summa compatible part number: 500-9812 / 500-0812
• Blade material: Tungsten carbide (HM)
• Type: Oscillating blade – tip
• Cutting angle: 84°
• Max. cutting depth: 14.3 mm
• Dimensions: 28 mm (height) × 0.63 mm (thickness)
• Installation: Fits directly into the original Zund or Summa blade holder

Compatibility and use

• Zund G3, S3, D3 and L3 series cutting tables
• Summa F-Series cutting tables (F1612, F1832, F2630, etc.)
• Other Zund and Summa models using part number Z20 / 500-9812

Function

• Precision oscillating cutting for tight radii and intricate details
• Cutting of vinyl, paper and cardboard with minimal overcut
• Processing of thin materials requiring high contour precision
• Cutting of small parts and detailed patterns with precise path

Possible symptoms of wear

• Loss of precision on small radii and fine details
• Excessive overcut at the start and end of the cut
• Frayed cut edges on vinyl and paper
• Blade vibration when cutting complex contours

Regular replacement of this blade ensures consistent cutting quality, reduces machine downtime and prevents waste caused by imprecise cutting.
