R112 Spiral Cutter – Zünd – Part No. 3910762

The Zünd R112 helical cutter (ref. 3910762) is a solid carbide milling tool, mounted on the Routing Module of Zünd digital cutting tables. Its fine diameter of Ø2 mm is designed for precision cutting and detailed contours on thin, rigid materials.

Its single-tooth helical geometry (1 cutting edge) directs chips upwards and preserves the cutting edge, even on demanding materials such as acrylic, polycarbonate or aluminium composites. The short cutting length (6 mm) increases the tool’s rigidity and limits deflection, ensuring high dimensional accuracy on small details.

Supplied as a single tool, the R112 fits directly into the Ø6 mm collet of the Zünd milling module. It is particularly suitable for machining fine lettering, engravings, internal cut-outs and small signage components.

Technical specifications

• OEM reference: 3910762 (R112)
• Manufacturer: Zünd
• Tool type: Spiral router bit
• Number of teeth: 1 (1 cutting edge)

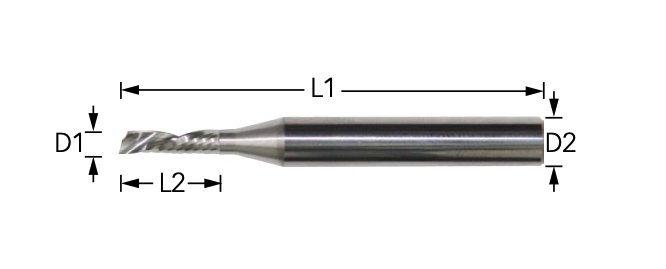

• Cutting diameter (D1): 2 mm
• Shank diameter (D2): 6 mm
• Overall length (L1): 50 mm
• Cutting length (L2): 6 mm
• Maximum rotational speed: 50,000 rpm
• Machinable materials: acrylic, aluminium, aluminium composite (Dibond), MDF, plastics, polypropylene, polycarbonate, PVC, wood
• Delivery: tool only, ready for mounting on the router module
• Application: Zünd milling module – fine cutting and detail milling

Compatibility and use

• Zünd cutting tables equipped with the RM-A or RM-L router module
• Zünd G3 series
• Zünd S3 series
• Zünd D3 series
• Zünd L3 series
• Any Zünd machine compatible with Ø6 mm shank cutters from the R series

Function

• To produce precision cuts in thin, rigid materials
• Milling fine contours, lettering and details on signage and POS displays
• Removing chips upwards thanks to the helical geometry (up-cut)
• Ensure a clean cut on acrylic, polycarbonate and engineering plastics
• Enable machining of aluminium and aluminium composites (Dibond) in thin gauges

Possible signs of wear

• Frayed or chipped cut edges on acrylic and polycarbonate
• Burrs and material melting at the exit on plastics (PVC, polypropylene)
• Burn marks and blackening on wood and MDF
• Adhered burrs at the cutting edge on Dibond and aluminium
• Abnormal noise, vibrations or cutter breakage during fine cuts
• Loss of dimensional accuracy on details and corners

Replacing the R112 as soon as these symptoms appear ensures cutting quality on fine details, protects the Zünd milling module and prevents tool breakage on high-value materials.
